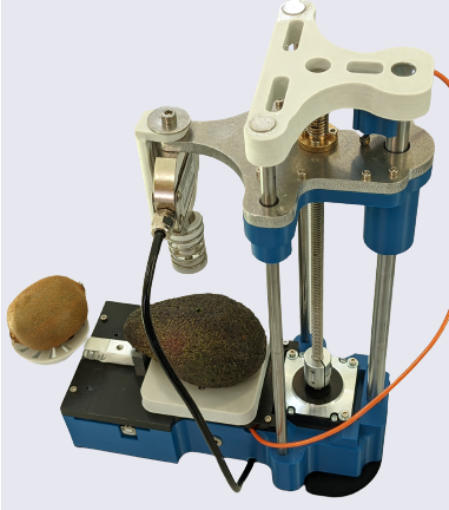

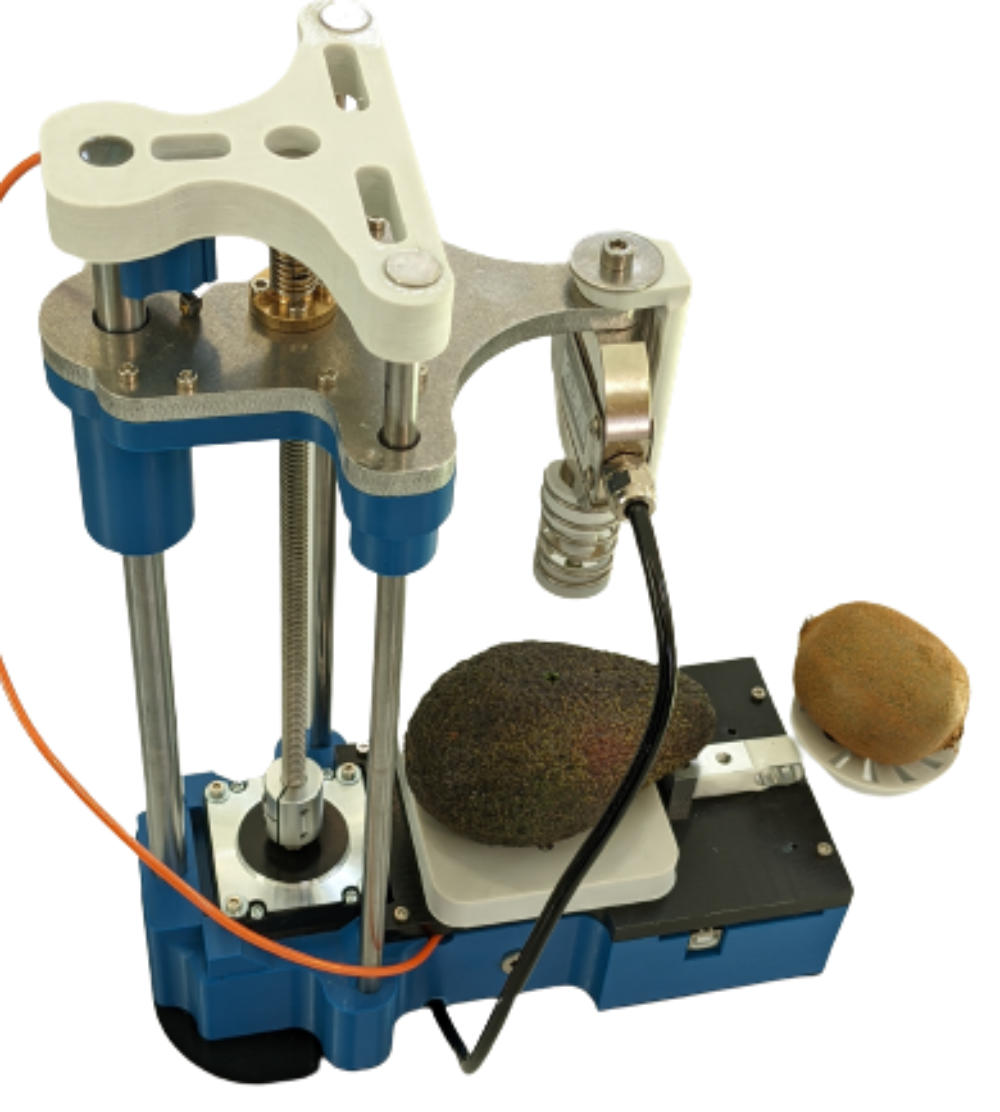

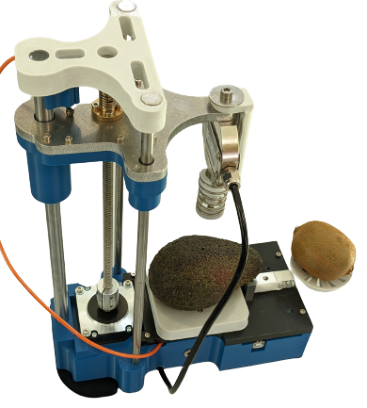

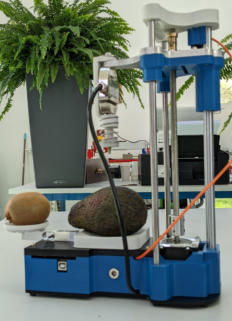

AGROSTA®FruitLab

Texture analyzis of any kind of fruit or vegetable,

can be used as penetrometer or deflection

measurement machine

Measures weight and size automatically as well

3804 € Express Freight

incl worldwide

Optional Spectrophotometer ROXANNE linked to the same software 985€




STAY

UPDATED

Our FruitLab is a versatile machine that can be used either for penetrometry or deflection measurement of any kind of fruit or vegetable : Apple, citrus fruits, peach, avocado, mango, banana, pear, carrot, radish, potato, onion… Texture analyzis : - Load cell capacity 20 Kg - Limited to 17 Kg maximum pressure (by software) - Measurements in Grams or Lb - Precision 1 gram - Resolution 1 gram - Software for Windows compatible with all Windows versions - Adjustable speed and stroke after contact - Nema 23 stepper motor - Anti-backlash lead screw - Spring to maintain the fruit on table during measurement Lab scale : - Capacity 3 Kg - Accuracy 1 gram - Automatic detection of the fruit - Automatic weighing transferred to Excel - The lab scale detects automatically the weight stabilization and transfers instantly the data to Excel, no button to press Size : - Accuracy 0.1mm - Resolution 1mm It comes with : - 2 Tips : Standard for penetrometry or deflection 8 (0.5cm2) and 11 (1cm2) - Another tip according to your requirements - A software for Windows on Usb stick - Usb cable - Power pack (110 - 220 Volts), plug according to the country of client About the software for windows : - Free license - Adjust the parameters : Speed, stroke, unit, or choose pre-configured parameters - Open any existing Excel file inside the software, or create one, choose where and how the data shall be added, start measurements

DATASHEET

pc connected qiality analyzer for fruits : size, weight and firmness
Removable spring provided by default Its function is to maintain the fruit on the table after measurement (the fruit does not go up with the tray)
Optional module for Agrosta®Fruitlab : DUROFEL module, designed for testing soft fruits and vegetables We provide the module with the 3 interchangeable tips : 10 (nectarine, plum, olive..), 25(cherry, blueberry) and 50 (strawberry) and a table of correspondence between pressures and durofel index (from 0 to 100%) The price of this option is 472 €

© Made by Agrosta 2023 lak@agrosta.org

AGROSTA®FruitLab

Texture analyzis of any kind of fruit or

vegetable, can be used as penetrometer or

deflection measurement machine

Measures weight and size automatically as well

fruit quality analyzer
